Heatshrink Receptacle Terminals

Heatshrink Receptacle Terminals

Minimum shrink temperature of the tubing is 150°C

Sizes Available: 4.0mm - 5.0mm

Materials: Brass, Tin, Polyethylene & Copper

Voltage rating: 600V

Operating temperature: -55°C to 125 °C

Heat shrink ratio: 1:1

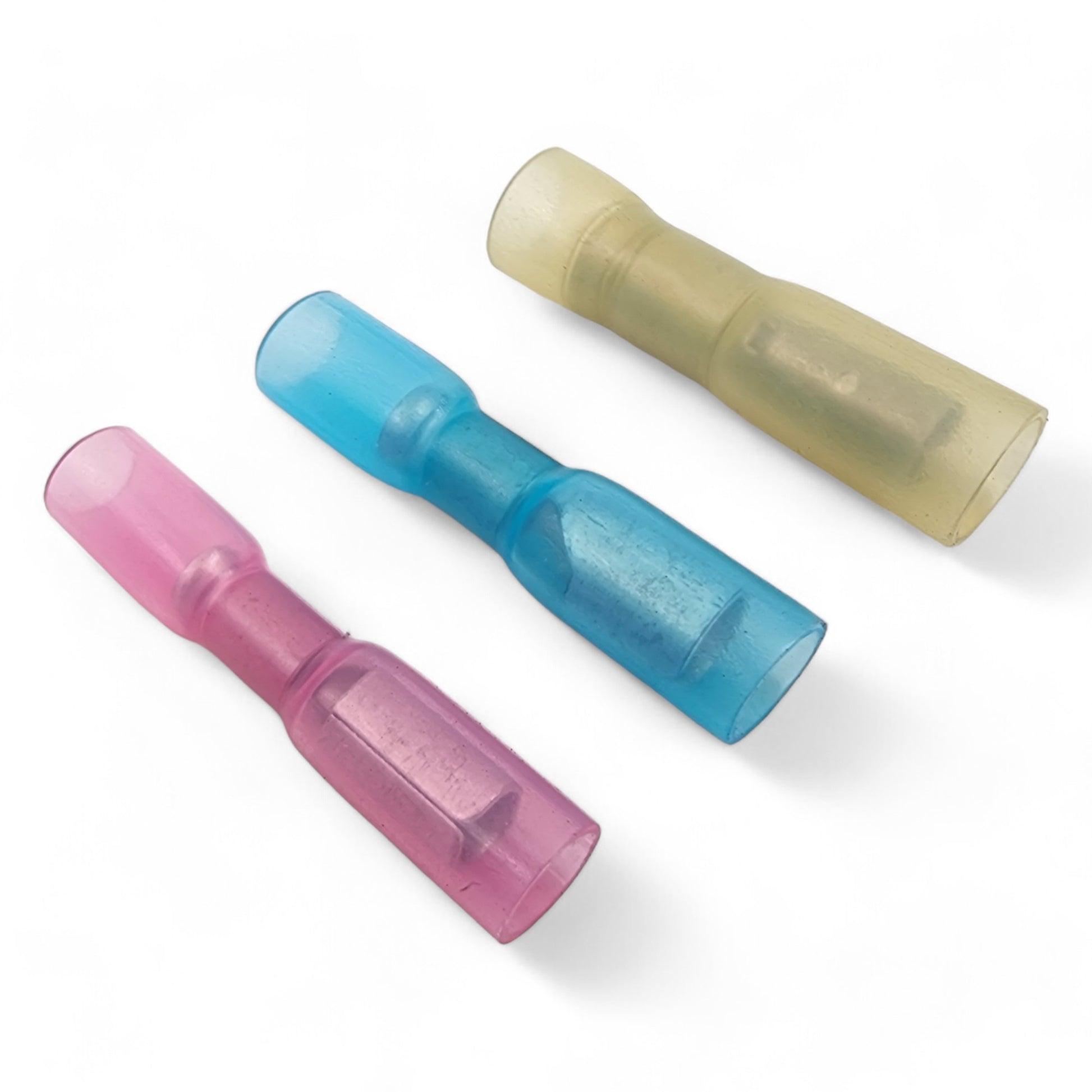

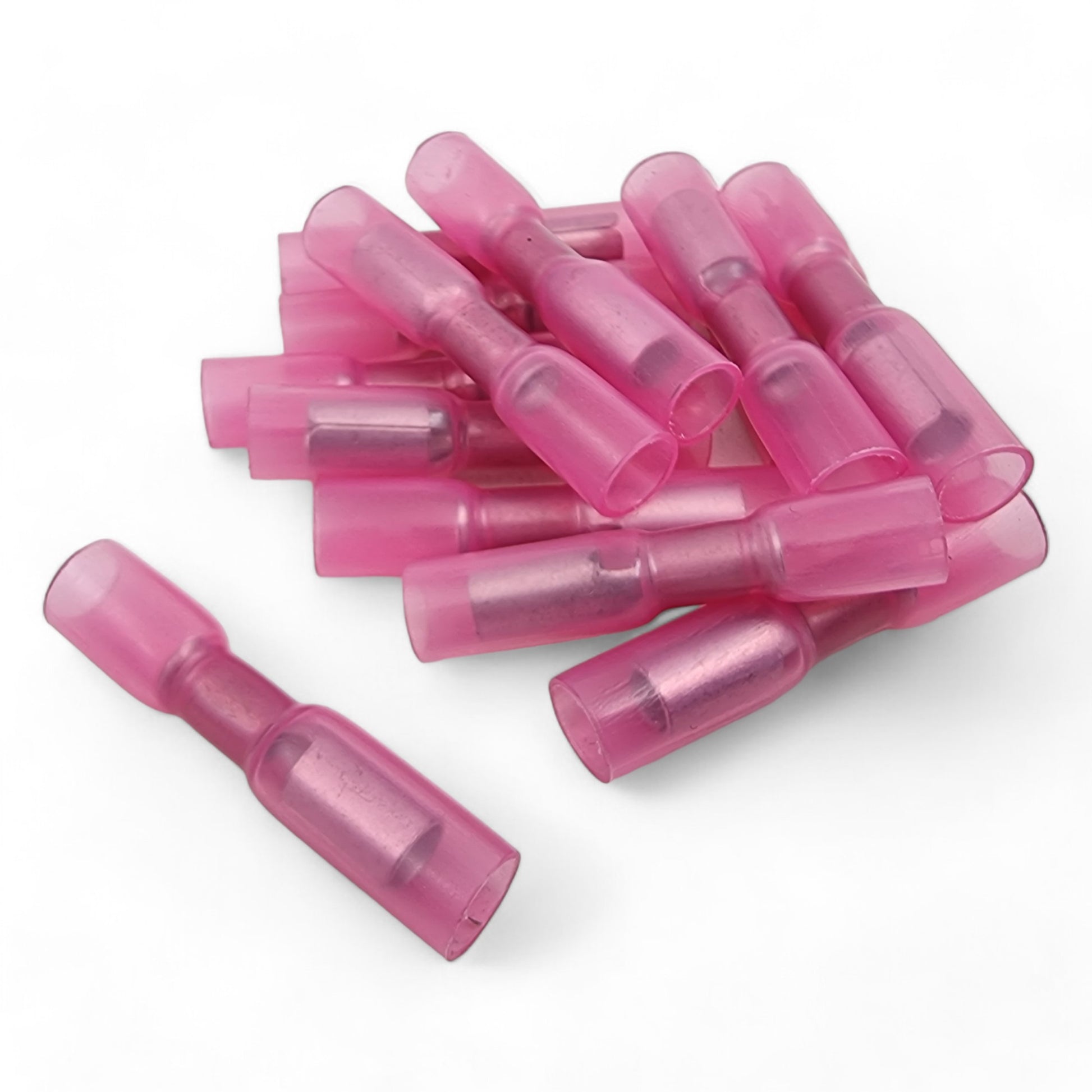

Red Connectors: 0.25mm² - 1mm² / 22-18 AWG

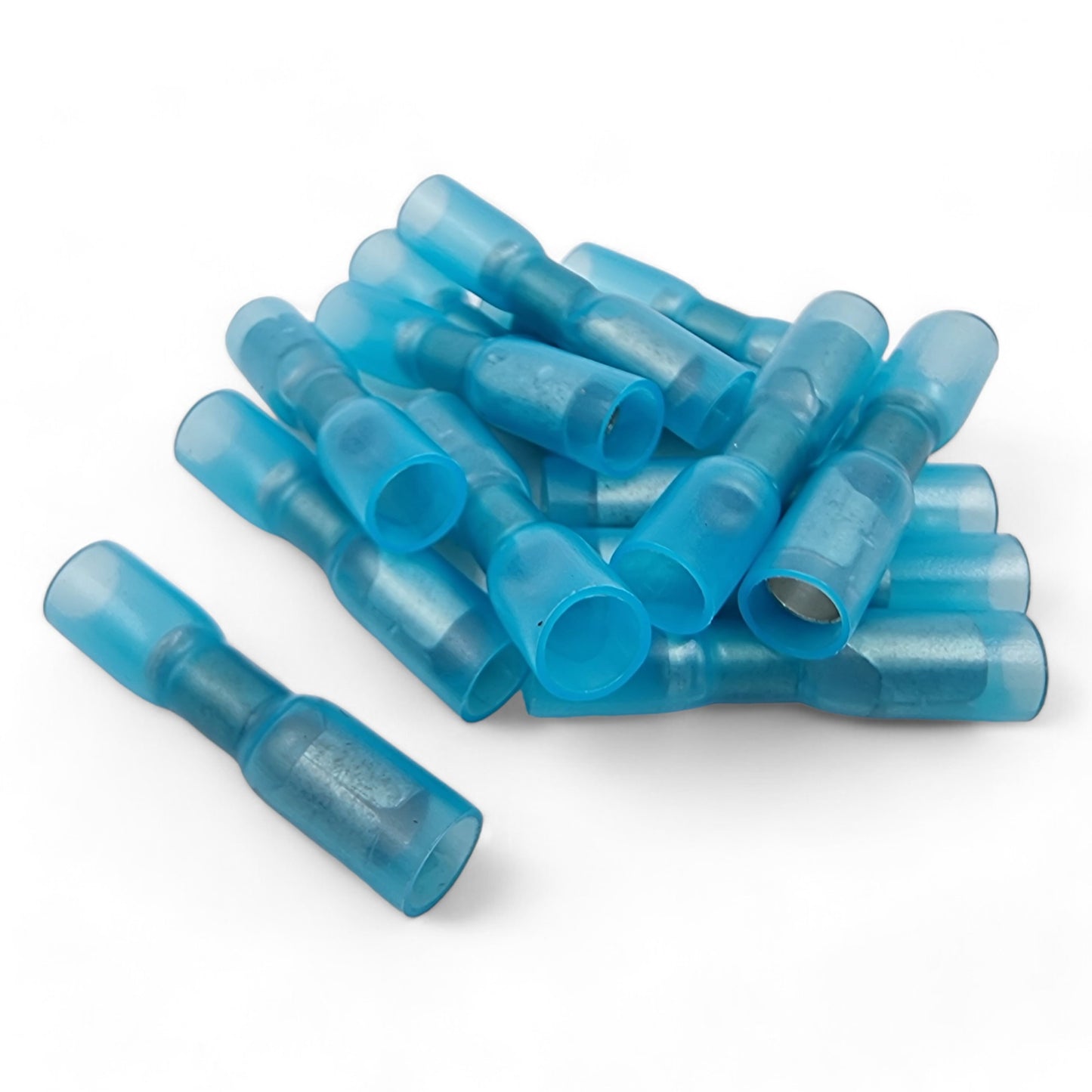

Blue Connectors: 1.1mm² - 2.6mm² / 14-16 AWG

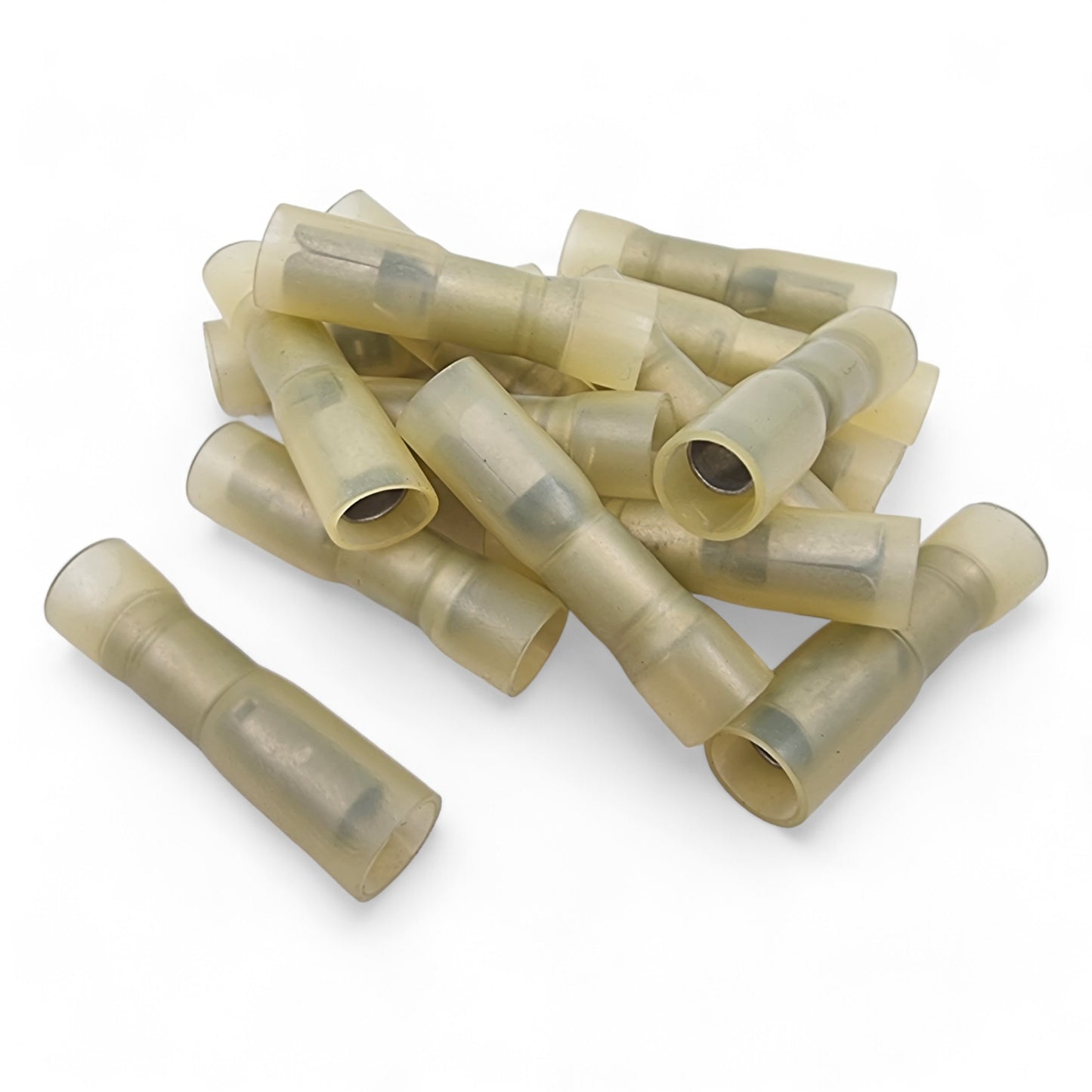

Yellow Connectors: 2.5mm² - 6.5mm² / 12-10 AWG

Watertight crimp splice tube

Commonly Used in Automotive, Machinery, Marine, Home Improvement, DIY, Electrical Industries etc...

All Terminals Are Manufactured To BS4579 and BS4G178
